Material Selection for Spiral Springs
The performance and reliability of spiral springs are directly tied to the material used in their construction. Selecting the right material is critical, as it lays the foundation for consistent spring performance, durability, and cost-effectiveness. Proper material selection ensures that your spring can meet the demands of its intended application, from torque delivery to environmental resistance.
Key Factors in Material Performance
- 1. Modulus of Elasticity
- This determines the stiffness of the spring material and influences how the spring behaves under load. The modulus must align with the desired torque and deflection characteristics for your application.
- A lower modulus of elasticity will mean more flexibility and better resistance to deformation. A higher modulus of elasticity will mean an increase in resistance to bending and higher torque.
- Normally, with most materials, the modulus of elasticity will not be influenced by tensile strength or heat treatment.
- 2. Tensile Strength
- A material's ability to withstand stress without breaking is essential for springs operating under high loads or in demanding environments. High tensile strength ensures durability and longer cycle life. It can also influence the materials resistance to bending. High tensile strength can depend on the material grade, elemental content, grain structure, manufacturing equipment, and material processing methods.
3. Corrosion ResistanceFor applications exposed to moisture, chemicals, or other corrosive elements, selecting a corrosion-resistant material like stainless steel can greatly enhance the spring's lifespan and reliability.
4. DurabilityDurability is one of the most critical considerations in spiral spring design, as it defines the spring's ability to maintain performance over time. It is influenced by factors like material fatigue resistance, tensile strength, surface quality, and edge condition.

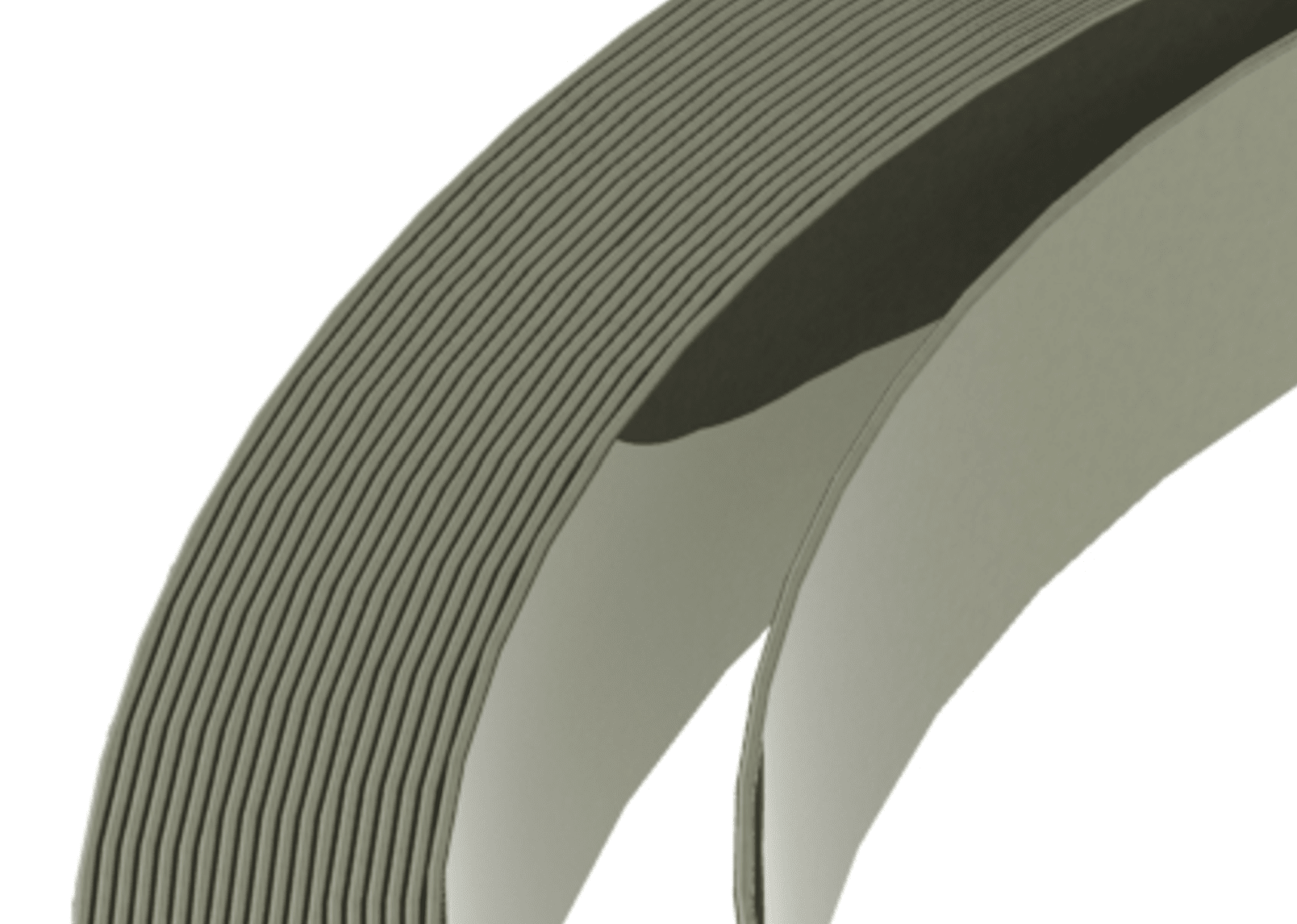

Surface ConditionThe surface condition of strip spring material is primarily determined by the rolling process. While additional surface processing is uncommon due to cost considerations and the generally good condition post-rolling, the surface quality remains a critical factor in spring performance and reliability.
Why Surface Condition Matters:1. Stress Uniformity: A consistent surface ensures uniform stress distribution, preventing localized stress concentrations that could lead to premature failure.2. Performance Consistency: A smooth surface enhances the predictability of the spring's behavior, particularly for applications demanding precise torque or deflection.3. Resistance to Cracking: Surface imperfections, such as scratches or pits, act as stress concentrators, significantly increasing the risk of cracking or fatigue under repeated loading.
Lower-grade carbon steel materials, often hot-rolled, typically retain a mill finish. This finish is economical and does not require additional processing, making it suitable for applications where surface condition is less critical.
Cold-rolled materials, on the other hand, are processed by repeatedly passing through rolling mills, resulting in a smooth, semi-polished finish. This process improves dimensional accuracy and surface quality, making it more appropriate for precision applications.
For higher-grade materials, additional processing steps may be performed to enhance specific material properties, such as strength, hardness, or surface consistency. Impact on Power Springs:In power springs, the entire length of the strip material undergoes repeated stresses during operation. Even minor surface irregularities can serve as initiation points for catastrophic failure. Therefore, achieving a high-quality surface finish and conducting thorough inspections during production are essential steps for ensuring the durability and reliability of the spring.
Cold-rolled materials, on the other hand, are processed by repeatedly passing through rolling mills, resulting in a smooth, semi-polished finish. This process improves dimensional accuracy and surface quality, making it more appropriate for precision applications.
For higher-grade materials, additional processing steps may be performed to enhance specific material properties, such as strength, hardness, or surface consistency. Impact on Power Springs:In power springs, the entire length of the strip material undergoes repeated stresses during operation. Even minor surface irregularities can serve as initiation points for catastrophic failure. Therefore, achieving a high-quality surface finish and conducting thorough inspections during production are essential steps for ensuring the durability and reliability of the spring.
Edge ConditionThe edge condition of the material plays an equally critical role in the durability and reliability of spiral springs.
- Minimizing Stress Risers: Smooth, well-prepared, and often rounded edges help prevent stress concentrations that can initiate cracking or failure.- Edge Integrity: Any defect, such as burrs or sharp notches along the edge, can compromise the material's ability to handle repeated stress cycles.- Consistent Performance: Proper edge preparation ensures the spring's performance is consistent across its full length.
#4 Rolled Edge:This edge is formed by rolling the material through specially designed dies or rolls to create a smooth, rounded edge.
#3 Slit Edge:Produced by slitting the steel coil to the required width, this edge retains the natural sharpness and roughness from the cutting process. It is economical but less refined, suitable for non-critical applications where edge quality is not a primary concern.
Slit & Deburred Edge:After slitting, the edges are mechanically deburred to remove sharpness and reduce roughness. This process creates a safer, smoother edge that minimizes stress concentrations and improves handling, making it suitable for applications requiring better edge uniformity without the cost of rolled edges.
#1 Round Edge:This edge is rounded and polished to create a highly smooth, uniform finish. It provides the best protection against edge cracking and stress concentrations, ensuring maximum performance and durability.
Since power and spiral springs rely on every part of the material to maintain structural integrity, any defect along the edge—no matter how small—can lead to premature failure. Advanced manufacturing techniques and rigorous quality control are essential to achieve the necessary edge quality for high-performance springs.
Material Grades
The availability and cost of materials play a significant role in the selection process. Fortunately, some widely available grades are suitable for a broad range of spiral spring applications:
- SAE 1075 Carbon Steel: Known for its high tensile strength and cost efficiency, this material is a popular choice for many applications. - SAE 301 Stainless Steel: Offers excellent corrosion resistance and good mechanical properties, making it ideal for environments where rust or chemical exposure is a concern. These are only two of the common grades and there are many alternative alloys that enhance material properties. Depending on the country of production, locally available equivalent grades may also be suitable and can help reduce costs or simplify procurement. For unique applications, specialized grades or alloys may provide the best balance of performance and durability. These may include advanced stainless steels, high carbon steel special alloys, and highly corrosion resistant materials.
- SAE 1075 Carbon Steel: Known for its high tensile strength and cost efficiency, this material is a popular choice for many applications. - SAE 301 Stainless Steel: Offers excellent corrosion resistance and good mechanical properties, making it ideal for environments where rust or chemical exposure is a concern. These are only two of the common grades and there are many alternative alloys that enhance material properties. Depending on the country of production, locally available equivalent grades may also be suitable and can help reduce costs or simplify procurement. For unique applications, specialized grades or alloys may provide the best balance of performance and durability. These may include advanced stainless steels, high carbon steel special alloys, and highly corrosion resistant materials.
Tailoring Material to ApplicationsThe ideal material often depends on the specific size, configuration, and operating conditions of the spiral spring. For instance:
- High-cycle applications may benefit from materials with superior fatigue resistance.- Compact designs may require materials with a high modulus of elasticity to achieve necessary performance in limited space.- Cost-sensitive designs for high-volume production might rely on locally available lower-grade steels.
- High-cycle applications may benefit from materials with superior fatigue resistance.- Compact designs may require materials with a high modulus of elasticity to achieve necessary performance in limited space.- Cost-sensitive designs for high-volume production might rely on locally available lower-grade steels.
Ensuring Durability with Mecca C&S Inc.Selecting the right material involves more than choosing from a list of options—it requires understanding how the material interacts with the design, manufacturing process, and intended application.
At Mecca C&S Inc., we understand that even the smallest details can significantly impact the performance and durability of your springs.
Our consulting services help you:- Evaluate and optimize material surface and edge conditions to maximize durability.- Navigate trade-offs between performance, cost, and availability.- Optimize designs for cycle life, torque consistency, and environmental resistance.- Identify manufacturing processes to eliminate inconsistencies and defects.- Implement quality control measures to ensure consistent results across production.
