Open Spiral Hair Springs: Design Overview
- Spiral hair springs, often used in precision instruments and mechanical devices, are a simpler variation of spiral power springs. While they share some functional similarities, they are uniquely suited for specific applications due to their distinct design characteristics.
- Key Features of Spiral Hair Springs

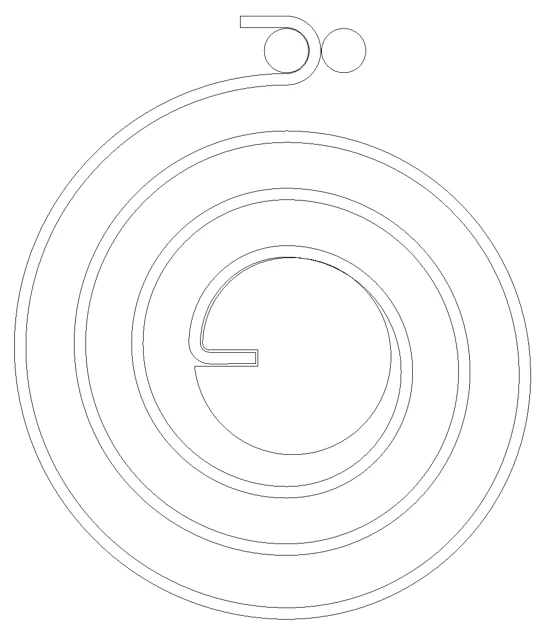

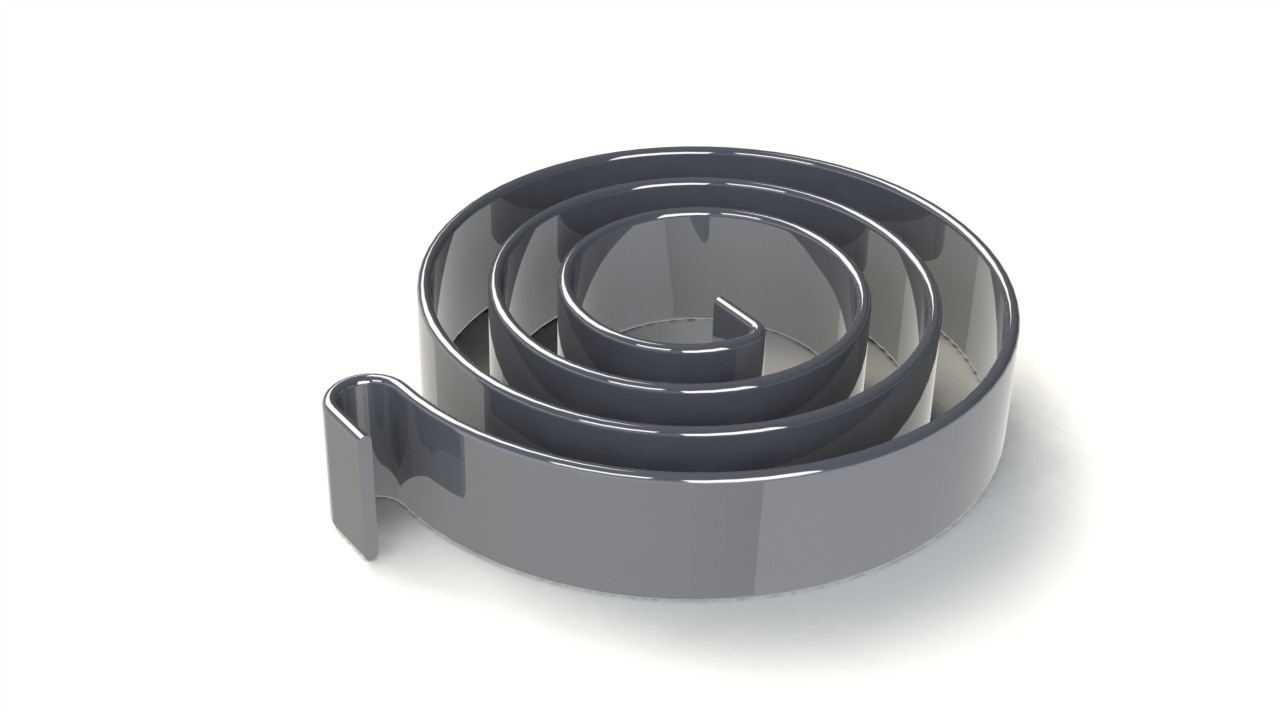

- 1. Open Spiral Free Shape
- - Spiral hair springs are characterized by their open spiral design, where the coils do not touch in their free state.
- - This design simplifies manufacturing and allows for easier customization to meet specific torque and displacement requirements.
- 2. Functionality and Torque Characteristics - Like power springs, spiral hair springs generate torque as the central arbor is wound. However, they differ in several key ways: - Torque Profile: The torque increases in a more linear fashion compared to the flatter torque curve of a power spring. - Turns: Spiral hair springs generally have fewer overall turns than power springs, limiting their energy storage capacity but making them ideal for precise, controlled movements. 3. Containment Requirements - Unlike power springs, spiral hair springs often do not require containment in a housing: - With fewer turns and less material, the design typically minimizes axial movement during winding. - The need for housing ultimately depends on the design specifics and the stresses exerted during operation.
Fabrication Methods
- 1. Forming Techniques
- Spiral hair springs can be fabricated through winding around a forming arbor or coiling:
- - Winding: A straightforward method for lower-volume production.
- - Coiling: Commonly performed using CNC machines for high-precision and high-volume production.
- 2. Automation
- The use of CNC coiling machines allows for automation in production, enabling consistent quality and cost efficiency, especially for high-volume applications.

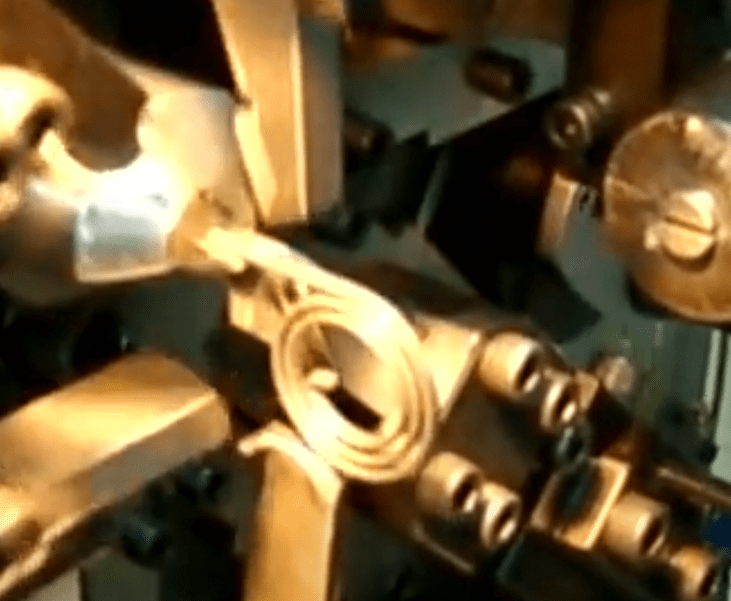

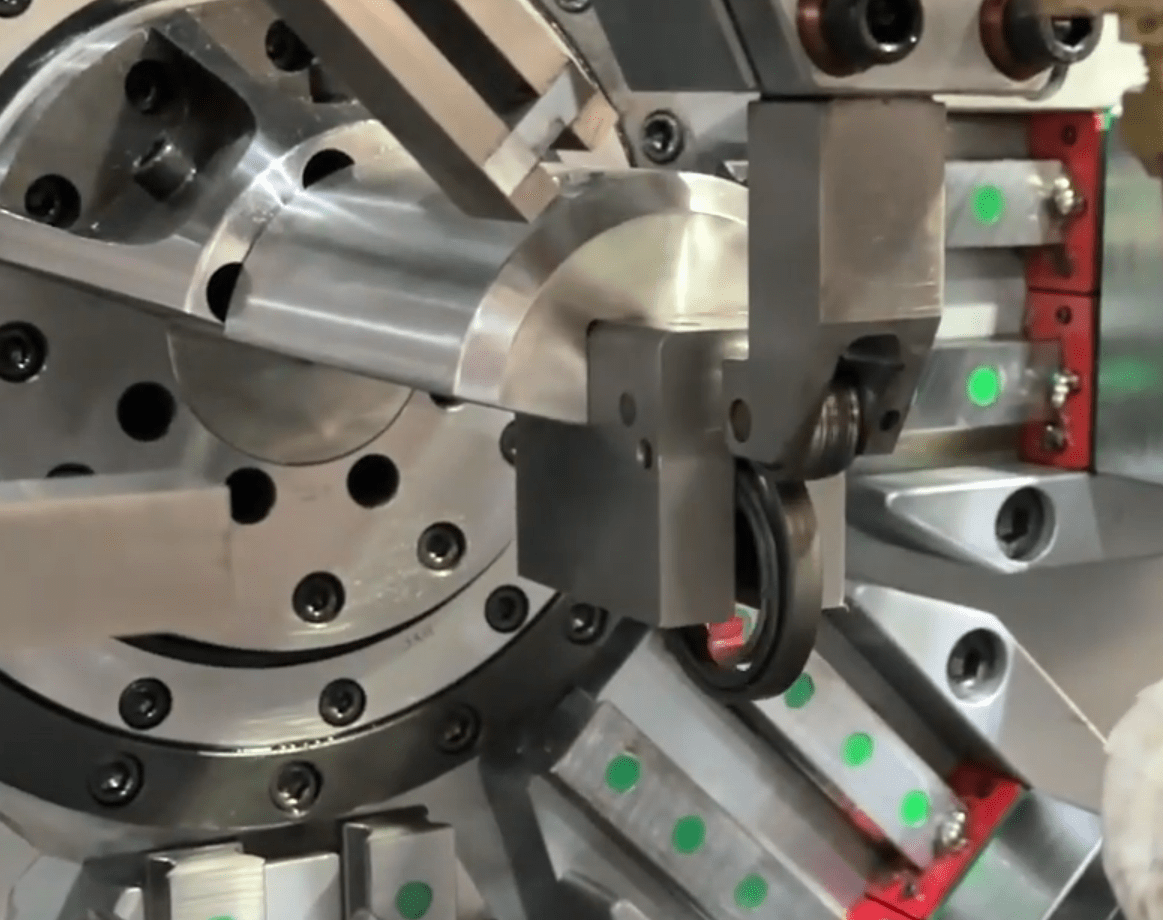

Automatic Machine Coiling
Automatic Machine Coiling
Material Selection
Spiral hair springs can be manufactured from a variety of materials, depending on the application requirements:
1. Standard MaterialsMaterials similar to those used in power springs are often employed, including high-carbon steels and alloys. 2. Cost-Effective Options Lower-grade steels may be chosen for high-volume applications to reduce manufacturing costs without compromising functionality. 3. Specialized MaterialsStainless steels and other corrosion-resistant alloys are often used for applications where environmental factors, such as moisture or chemicals, are a concern. Heat TreatmentHeat treatment is an essential step in the manufacturing process for many spiral hair springs, providing two primary benefits: 1. Stress ReliefRelieves residual stresses introduced during forming, improving the spring's durability and performance. 2. Increased HardnessIn some cases, heat treatment is used to enhance the material's hardness, increasing the spring's resistance to deformation under load and extending its lifespan.
1. Standard MaterialsMaterials similar to those used in power springs are often employed, including high-carbon steels and alloys. 2. Cost-Effective Options Lower-grade steels may be chosen for high-volume applications to reduce manufacturing costs without compromising functionality. 3. Specialized MaterialsStainless steels and other corrosion-resistant alloys are often used for applications where environmental factors, such as moisture or chemicals, are a concern. Heat TreatmentHeat treatment is an essential step in the manufacturing process for many spiral hair springs, providing two primary benefits: 1. Stress ReliefRelieves residual stresses introduced during forming, improving the spring's durability and performance. 2. Increased HardnessIn some cases, heat treatment is used to enhance the material's hardness, increasing the spring's resistance to deformation under load and extending its lifespan.
Applications of Spiral Hair Springs
Due to their precision and customizable features, spiral hair springs are used in:
- Watches and timing mechanisms.- Sensors and measurement devices. - Automotive components.- Precision tools requiring controlled torque and displacement. By understanding these design principles, engineers and designers can optimize spiral hair springs for their intended applications, ensuring performance, reliability, and cost-effectiveness. Let us know if you need further insights into specific aspects of spiral hair spring design!
- Watches and timing mechanisms.- Sensors and measurement devices. - Automotive components.- Precision tools requiring controlled torque and displacement. By understanding these design principles, engineers and designers can optimize spiral hair springs for their intended applications, ensuring performance, reliability, and cost-effectiveness. Let us know if you need further insights into specific aspects of spiral hair spring design!

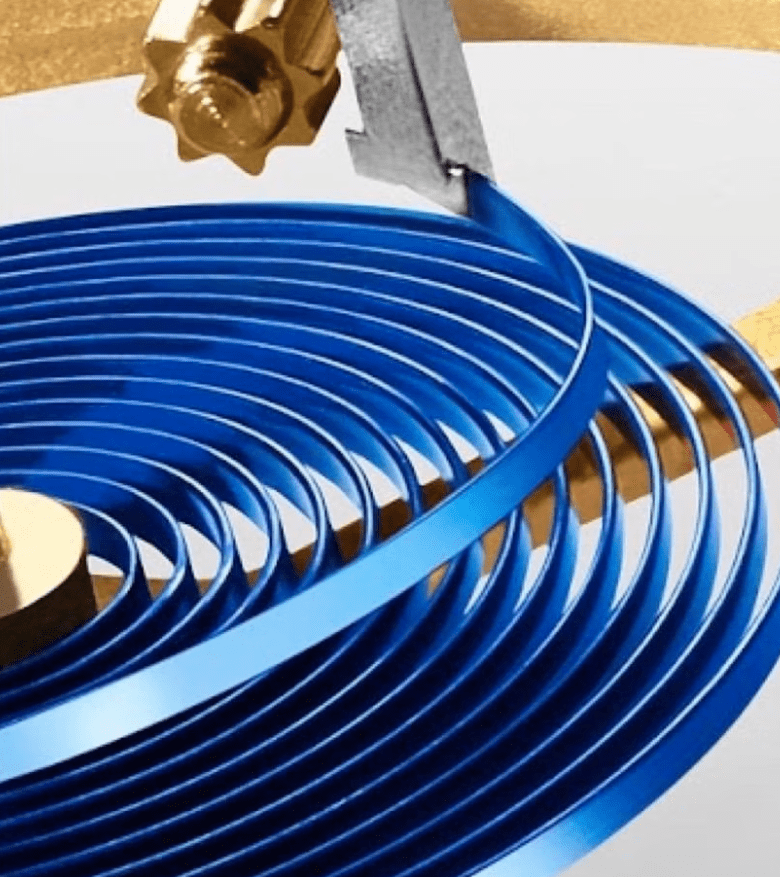

Watch/Instruments

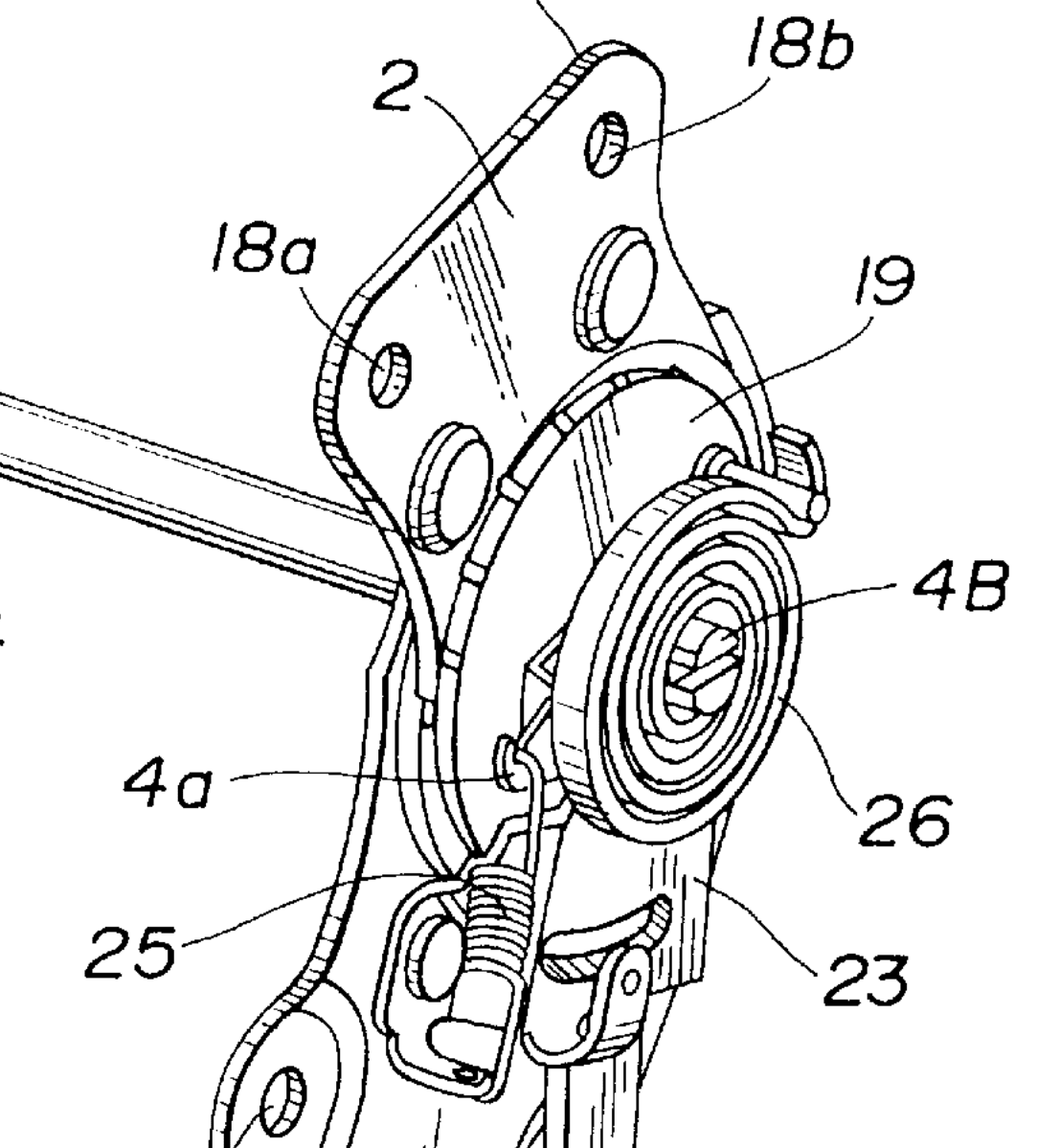

Automotive
